Item Detail

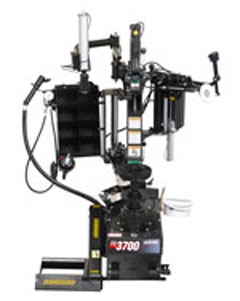

TC3700 TC with Press Arm, Wheel Lift, Black
Item Number: HUNTC3715WBL

Supplied by HUNTER ENGINEERING COMPANY (see all)
ITEM IS DISCONTINUED

1-855-298-2687






Description

Black center clamping tire changer with two speed electric motor with press arm and wheel lift package.

Features

  • Standard tool head unit
  • New split roller design
    • For improved bottom bead demounting and bead breaking
  • Automatic locking roller arm assembly upon activation
  • Vertically locking head
  • Split bead loosening arms
  • Two-speed electric motor
  • Movable column
  • Adjustable work height
  • Press arm
  • Wheel lift package
  • 220V, 15A, 1ph (L6-20P Plug Provided)

Includes

  • Press arm
  • Wheel lift package

Warranty

Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.






Product Specification

Weight788 lbs.
Power Requirements208-230V, 15A, 60Hz, 1 ph NEMA 20 amp plug, L6-20P
Air Supply Requirements115-145 psi (8-10bar)
Mount/Demount ToolPolymer Mount Head
Clamping TypeCenter w/Quick Clamp and Cam Plate
Bead Loosening TypeRollers or Shovel (Optional)
Match Mounting CapableYes
Adjustable Clamping HeightYes
Rim Diameter Range10-28 in.
Dimensions53"W x 72"H x 43"D
Maximum Tire Diameter50 in.
Maximum Wheel Width19 in.
Drive7 and 15 rpm CW, 15 rpm CCW
